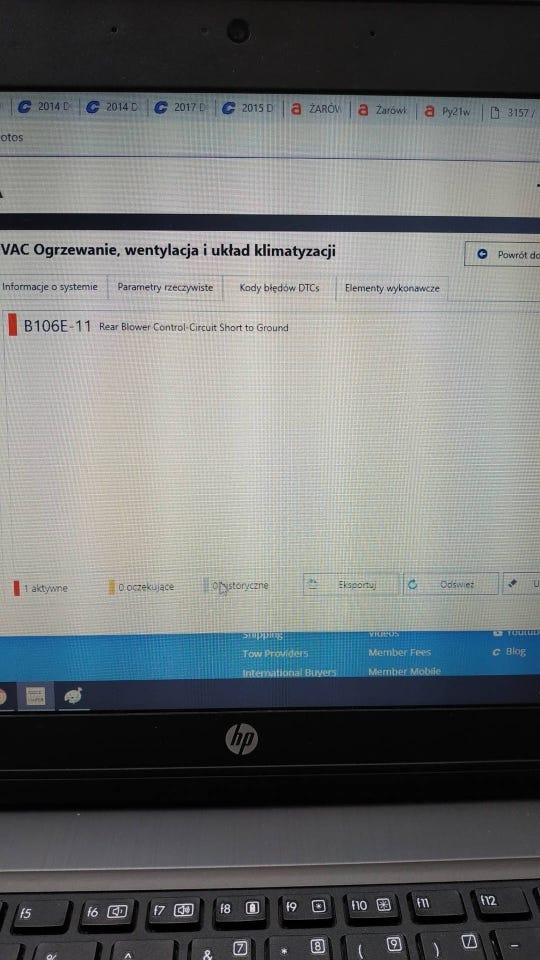

Hello. I have a problem on my Durango 2011. Rear HVAC doesn't work. I checked rear blower and resistor, everything works fine. I see B106E-11 error but i can't find where is problem
![Image]()
Rear HVAC B106E-11
marcinwuwua
1 - 13 of 13 Posts
Joined
·
9 Posts
Hello. I have a problem on my Durango 2011. Rear HVAC doesn't work. I checked rear blower and resistor, everything works fine. I see B106E-11 error but i can't find where is problem
![Image]()
Joined
·
9 Posts
I checked everything. I found no reason
Joined
·
9 Posts
with the rear controller disconnected, the error still showing. Did you think that front controller may be damaged ?
Joined
·
101 Posts
M34 fuse. That should be blown. I will lookup the two relays tomorrow which could be the cause of that fuse to blow.
Joined
·
9 Posts
All fuses are good.
Joined
·
101 Posts
If it is a short to ground a fuse has to blow. There shouldn't be any circuits without going through fuses.
Joined
·
101 Posts
Also is this a stored code or active code. If its a stored code, it could be at some point a component shorted out and someone replaced it. forgot to clear the codes after replacing the component.
Joined
·
9 Posts
Code is active. I checked all the fuses. Repleced m34. When I delete the code it appears after a few seconds as active. I think that can be bad conection. I dismantled half car, I had to check between the fuse box and connection in the car.
Joined
·
9 Posts
Joined
·
9 Posts
Main blower power cable replaced. Everything works!!!
Where exactly is this I’m having the same problem1# I found a strange cable connection from the main air conditioning panel
2# I have no voltage on the light above the lighter.![Image]()
![Image]()
![Image]()
